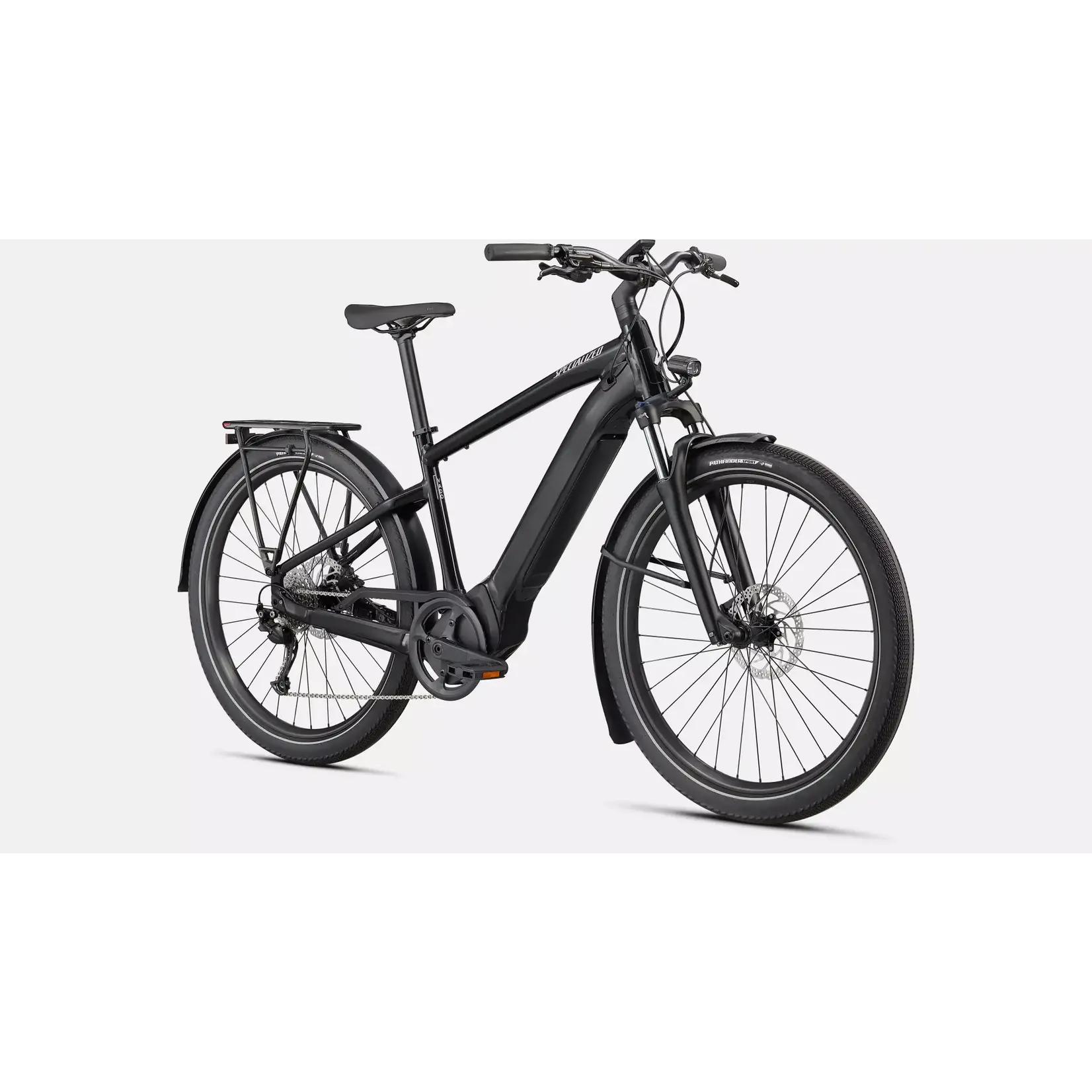

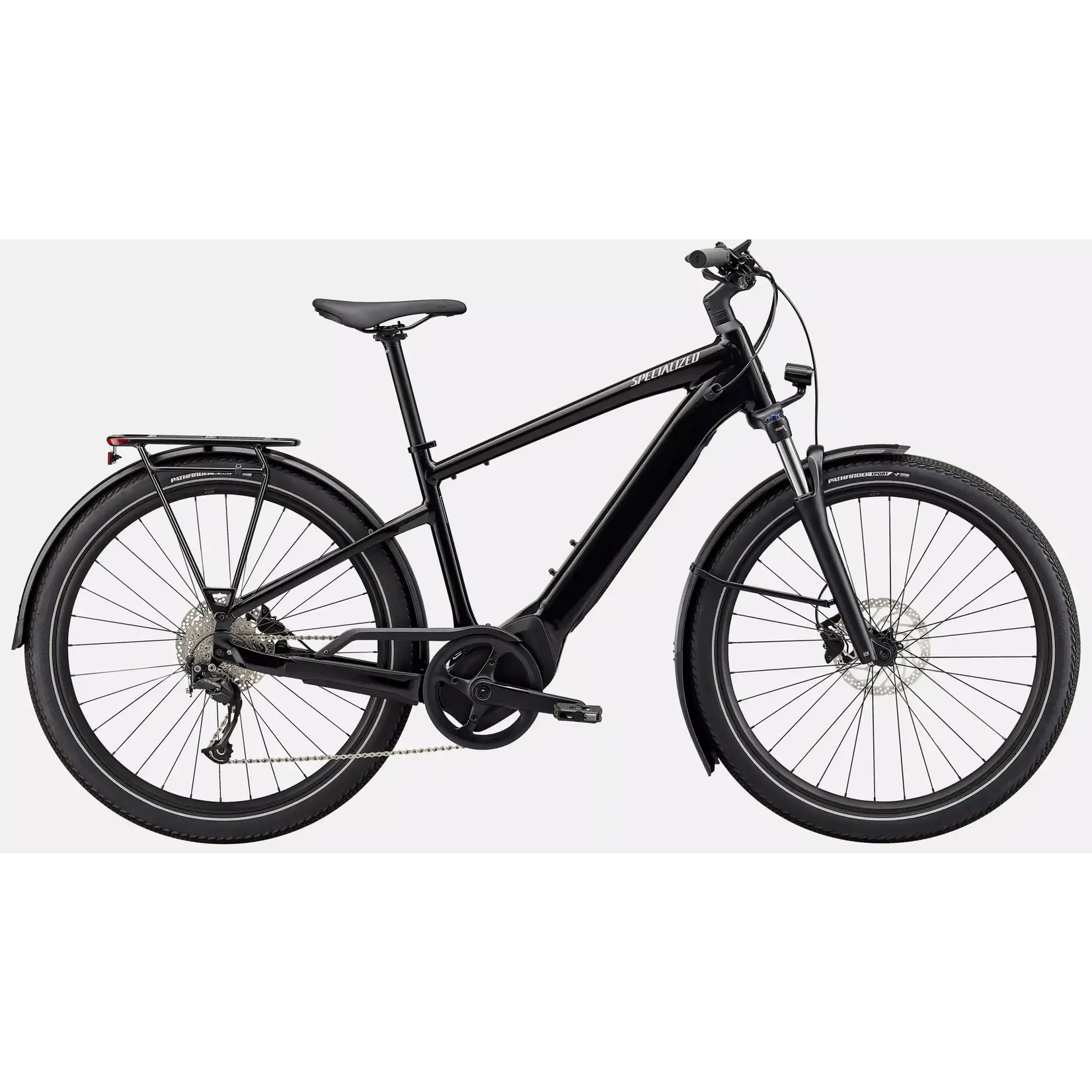

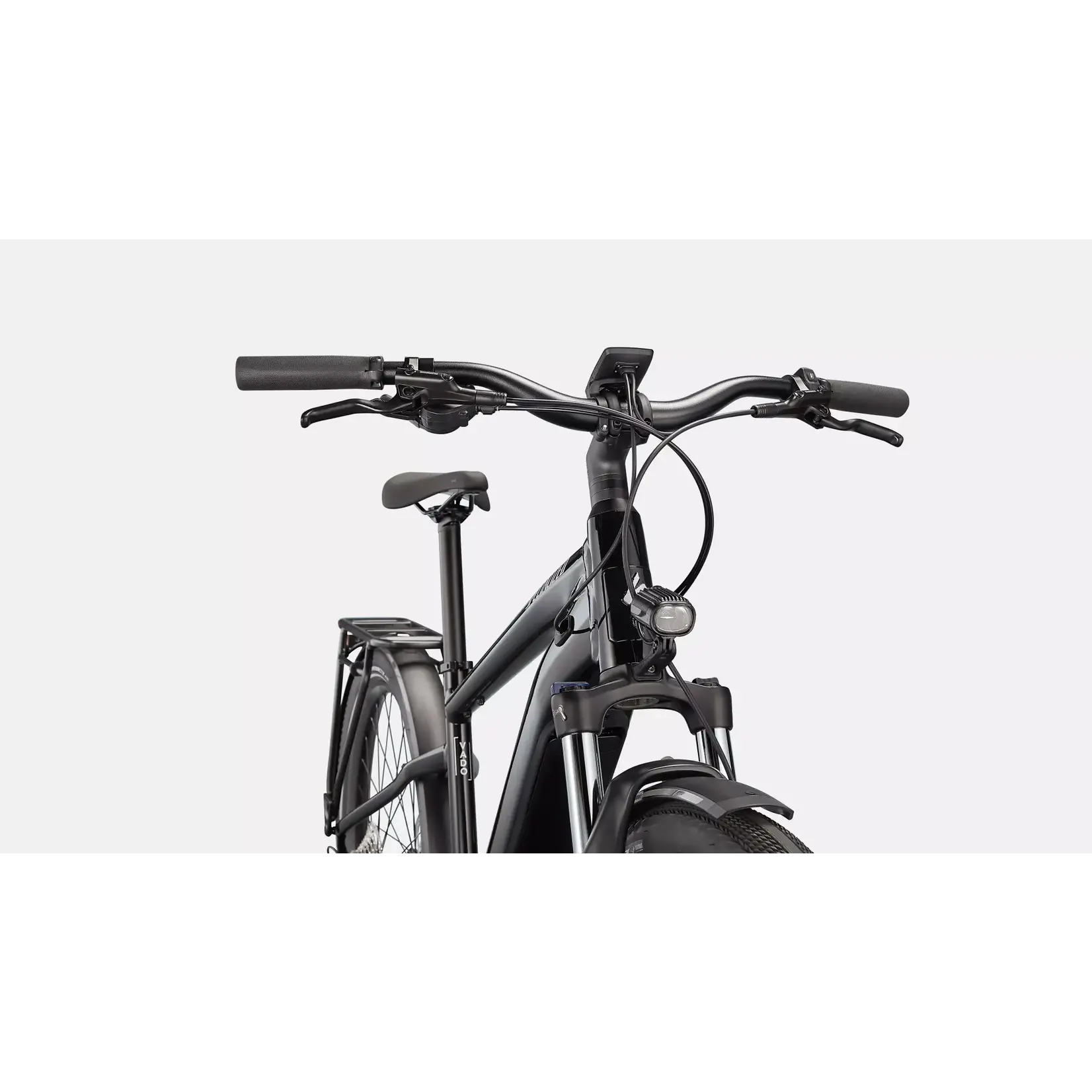

VADO 3.0

$4,800.00
Article number: 95020-7003
Availability: In stock (1)
Delivery time: IN STORE ONLY

Beginning with the integrated Specialized 1.2 E motor, the Turbo Vado proves itself as the ultimate city bike. The 1.2 E uses the same hardware as our 1.2 motor, but it features a tune that prioritizes efficiency. This means less peak torque and maximum output. Of course, it still features a near-silent operating design with our Custom Rx Street Tune that takes the output and makes it the most usable for an urban environment. Think of it this way: The more power you put out, the more power the motor puts out, and this makes accelerations from a standstill at, say, a traffic light both quick and efficient. The belt driven motor is also smooth, silent, and free of annoying vibrations.

For the Vado 3.0, we developed a custom Specialized U1-460 battery that seamlessly integrates into the frame, is lockable, and easily removable for simplified charging. In other words, there's plenty of juice to take you to and from work, a trip to the grocery store, or even to that new café on the other side of the city. If you wish to see exactly how far you can go on a charge, have a look at our Turbo Range Calculator for more exact estimates.

The new wired Turbo Connect Display (TCD-w) is the best way to view data on your Turbo. It not only displays important ride metrics (speed, cadence, rider power, distance, battery level, time, etc.), it also allows you to connect the latest version of the Mission Control App for an enhanced Turbo experience. With our free app for iOS and Android phones, you easily customize motor parameters, control your range, record/upload rides, and perform basic system diagnosis.

To top off all of the innovative features, we chose a worry-free spec that features Shimano 9-speed components, hydraulic disc brakes, front/rear lights, and fender & rack mounts.

  • The Turbo Vado features a lightweight alloy frame that’s been designed with our Fitness/Transportation Geometry.
  • The Turbo Vado’s Specialized 1.2 E motor emphasizes efficiency and range. We also fully integrated it with the frame, and it's been custom-tuned for city riding. It intuitively reacts to the force of your pedaling, so the harder you pedal, the more power it delivers. And with an internal belt drive design, it does this without added vibration for the smoothest and most silent ride possible.
  • We made the custom 460 Wh battery to be fully integrated with the frame, removable for easy charging, and lockable for added security. It communicates with the display and has multiple modes to maximize the overall efficiency and range. For range estimates based upon a variety of variables, please refer to our Turbo Range Calculator.



Technical Specifications

DRIVETRAIN
Chainrings 36/22T
Cassette Shimano CS-HG200, 9-speed, 11-36t
Rear Derailleur Shimano Acera, RapidFire Plus, 9-speed
Chain KMC e9T.NPNP, e-bike chain, 9-speed w/ Missing Link™
Shift Levers Shimano Alivio, 9-speed w/ Optical Gear Display
Crankset Custom alloy forged crankarms
COCKPIT
Handlebars Stout Mini Rise, alloy, 9-degree backsweep, 15mm rise, 31.8mm
SeatPost Specialized 2-bolt head, forged alloy, 8mm offset, micro-adjust, 30.9mm
Stem Specialized Flowset, 3D-forged alloy, 20-degree rise, 31.8mm clamp
Saddle Bridge Sport, Steel rails, 155mm
Tape Specialized Body Geometry Contour, lock-on
E-BIKE
Wiring Harness Custom Specialized harness
Motor Specialized 1.2 E, custom Rx Street-tuned motor, 250W nominal
Battery Specialized U1-460, On/Off button, state of charge display, 460Wh
Charger Custom Specialized 42V2A Charger w/ Rosenberger plug, AC power cord included
UI/Remote Specialized TCD-W w/ handlebar remote & built-in anti-theft feature, Bluetooth® connectivity, 5 available display pages
WHEELS
Front Hub Specialized 6-bolt disc, ball bearings, 9x100mm spacing, 32h
Spokes DT Swiss Industry
Rear Tire Trigger Sport Reflect, 700x47c
Rims 700C disc, double-wall alloy, pinned, no eyelets
Rear Hub Specialized, sealed cartridge bearings, 12x148mm thru-axle, 32h
Front Tire Trigger Sport Reflect, 700x47c
BRAKES
Front Brake Tektro HD-T275, hydraulic disc, 180mm
Rear Brake Tektro HD-T275, hydraulic disc, 160mm
ACCESSORIES
Pedals Specialized Commuter w/ grip tape & reflectors
Fenders DRYTECH fenders, 52mm width, stainless steel fenderstays
Bell Simple bell
Kickstand Specialized kickstand, 40mm mount
WHEELS & TIRES
Inner Tubes Bridge Sport, Steel rails, 155mm
FRAMESET
Fork SR SunTour MOBIE30, custom crown, steel steerer, 9mm open dropout, 50mm of travel
Frame E5 Aluminum, bottom bracket motor mount, Fitness/Transportation Geometry, fully integrated & lockable down tube battery, internal cable routing, fender/rack mounts, Smooth Welds
Seat Binder Alloy, bolt-type, 34.9mm
